Quartz Tube Manufacturer
Custom Quartz Tubes & Fused Quartz Furnace Tubes
Drawing-based fabrication of fused quartz tubes, process tubes and furnace tubes with custom dimensions, ends, ports, flanges and surface requirements.
Category Scope
Custom quartz tube sourcing starts with the tube drawing and application
This category page covers quartz tubes, fused quartz tubes, quartz furnace tubes and quartz process tubes as a sourcing family. For exact diffusion or reactor tube details, use the related product pages below. For non-standard dimensions, ports, flanges, ends or assemblies, send available drawings or sample details for engineering review.
Tube body
OD, ID, wall thickness, length and straightness are confirmed by requirement.
Tube ends
Open, closed, polished, ground, flanged or application-specific ends can be reviewed.
Tube features
Side ports, slots, welded fittings and assemblies depend on geometry and process risk.
Tube Types We Fabricate
Quartz tube types and custom structures
Tube projects are reviewed by drawing, material and use case. The examples below are sourcing directions, not fixed-stock promises.

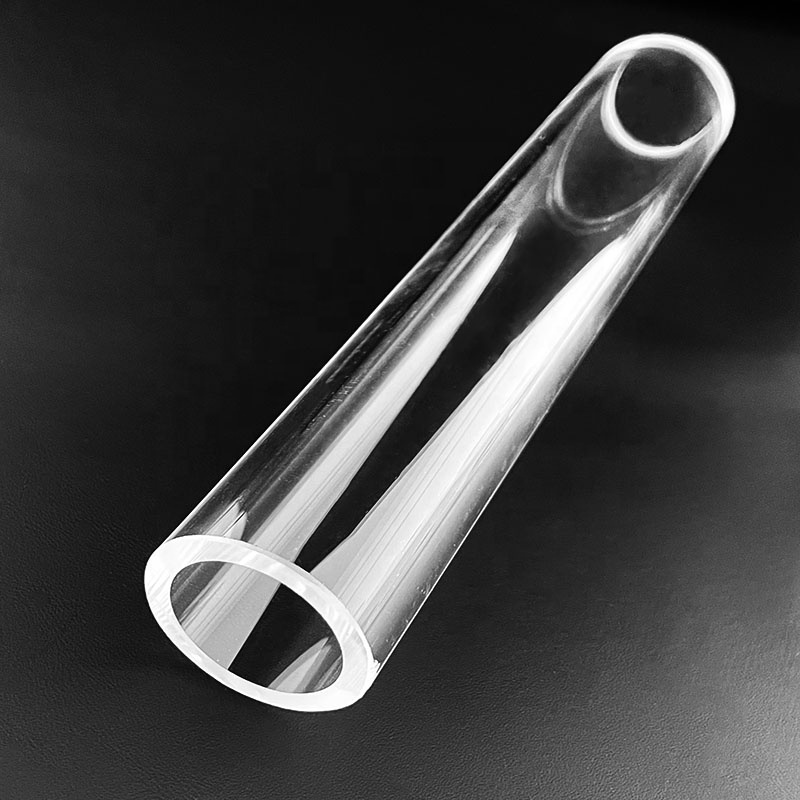

Straight quartz tubes
Open straight fused quartz tubes reviewed by OD, ID, wall thickness, length, end finish and application environment.
Specify tube dimensionsQuartz furnace tubes
Quartz furnace tubes for thermal-processing equipment where material grade, length, end structure and operating conditions need review.
Send furnace tube specsQuartz diffusion tubes
Diffusion and oxidation tube projects can be routed to the dedicated product page for more specific semiconductor furnace context.
View diffusion tubeQuartz process tubes
Process tube designs for CVD, heating, laboratory or custom assemblies are reviewed against the actual drawing and use case.
View reactor tubeQuartz reactor tubes
Reactor tube projects may include side ports, flanged ends, polished internal surfaces or process chamber integration needs.
View reactor tubeFlanged quartz tubes
Quartz flanges, fittings and welded tube assemblies can be reviewed for sealing face, port position and thermal-processing requirements.
View flanges and fittingsClosed-end or open-end tubes
End structure is confirmed from the drawing, sample or equipment interface rather than assumed from a standard catalog size.
Discuss end structureTubes with side ports or welded fittings
Side ports, fittings and welded features are reviewed by geometry, sealing requirement, thermal stress risk and inspection scope.
View thermal processingCustom tube assemblies
Non-standard tube assemblies can be reviewed as drawing-based fused quartz fabrication projects.
View custom fabricationCustom Specifications
Information that helps quote custom fused quartz tubes
Because tube manufacturability changes with diameter, wall thickness, length, ends, ports and thermal stress, the safest starting point is a drawing, sample or clear specification list. Not every geometry can be produced, and feasibility is confirmed before quotation.
OD / ID
Wall thickness
Length
End type
Flange or side port
Straightness
Surface finish
Application temperature
Chemical or process environment
Drawing or sample reference
Materials
Fused quartz and high-purity quartz glass for tube projects
Tube material is selected according to process environment, thermal load, visual requirements and contamination sensitivity. For material background, start with the fused quartz material page.
View fused quartz materialFused quartz
A common material route for high-temperature quartz tubes, process tubes and custom furnace components.
Fused silica
Reviewed when optical, purity or thermal requirements call for a specific fused silica grade.
High-purity quartz glass
Considered for semiconductor, photovoltaic and other contamination-sensitive applications.
Transparent or opaque quartz
Selected where applicable based on thermal behavior, visibility, process conditions and equipment design.
Tube Fabrication Capabilities
Processing steps for quartz furnace and process tube projects
Tube fabrication may combine cutting, end finishing, drilling, slotting, grinding, polishing, welding, flame working, inspection and packaging requirements.
Precision cutting
Cut tube blanks and tube sections to specified length and prepare parts for further finishing.
End finishing
Review edge finish, sealing face preparation and end requirements where the tube connects to equipment hardware.
Drilling and slotting
Machine holes, slots and openings when the wall thickness, edge distance and geometry allow reliable processing.
Grinding and polishing
Finish external, internal or sealing surfaces where the application requires controlled surface condition.
Welding, flame working and thermal processing
Review side ports, flanges, closed ends and tube assemblies that require quartz thermal processing.
Inspection and packaging requirements
Confirm dimensional checks, surface checks and packaging expectations according to the application and drawing notes.
Applications
Where fused quartz tubes are commonly specified
Semiconductor diffusion and oxidation
Fused quartz tubes used in furnace workflows where purity, tube geometry and thermal stability matter.
CVD or process equipment
Quartz reactor and process tubes can be reviewed for ports, flanges, surface finish and chamber integration.
Photovoltaic processing
Custom quartz tubes and thermal-processing components for photovoltaic manufacturing environments.
Laboratory and research furnaces
Small-batch or custom tube projects for research, pilot and laboratory equipment.
Industrial heating
Quartz tube requirements for industrial thermal-processing equipment can be reviewed from drawings or samples.
Related References
Tube-related products and capabilities
Use the category page for broad quartz tube sourcing. Use the linked product pages for specific diffusion, reactor, flange and assembly references.
Procurement FAQ
Questions buyers ask before sourcing custom quartz tubes
Can you fabricate quartz tubes to custom drawings?
Yes. TuguanSemi can review custom quartz tube drawings and confirm feasibility based on geometry, material, tolerance and application requirements before quotation.
What information is needed to quote a quartz tube?
Please share OD, ID, wall thickness, length, end type, port or flange requirements, material preference, quantity, application conditions and any available drawing or sample reference.
Can you make quartz furnace tubes with flanges or side ports?
Flanges, side ports and welded fittings can be reviewed for quartz furnace tubes. Feasibility depends on tube geometry, sealing needs, thermal stress risk and inspection requirements.
What quartz materials are available for tube fabrication?
Projects may use fused quartz, fused silica, high-purity quartz glass, and transparent or opaque quartz where applicable. Material selection depends on the process environment and design requirements.
Can quartz tubes be cut to custom length?
Quartz tubes can be reviewed for custom cutting and end finishing. The available length and finish depend on material supply, tube diameter, wall thickness and final application requirements.
Can you support prototype and batch tube orders?
Prototype, small-batch and batch quartz tube projects can be discussed after engineering review. Quantity, lead time and process route depend on geometry, material availability and inspection scope.
What inspection documents can be provided?
Inspection support may include dimensional checks, surface checks, material certificate when available, CMM inspection where applicable, and leak testing for relevant welded or vacuum-related tube assemblies.
Which applications use fused quartz tubes?
Fused quartz tubes are used in semiconductor diffusion and oxidation, CVD and process equipment, photovoltaic processing, laboratory furnaces and industrial thermal-processing applications.
Can you make replacement quartz tubes from a sample?
Sample-based review is possible for many replacement quartz tube projects. Final feasibility depends on whether critical dimensions, material needs and equipment interfaces can be confirmed clearly.
How should tube drawings or specifications be sent?
Use the contact or RFQ form to send available drawings, photos, dimensions and application notes. If a formal drawing is not ready, share the clearest specifications available for initial review.
Start an RFQ
Request a Quote for Custom Quartz Tubes
Send your tube drawing or specifications and discuss a fused quartz tube project with TuguanSemi.
