Drawing-Based Quartz Fabrication
Custom Quartz Glass Fabrication for Drawing-Based Fused Quartz Parts
Send drawings, samples or specifications for custom fused quartz components manufactured through cutting, drilling, slotting, grinding, polishing and thermal processing.
Custom Fabrication Scope
Fused quartz components made from drawings, samples or specifications
TuguanSemi provides drawing-based custom fabrication of fused quartz glass components for semiconductor, photovoltaic, optics, laboratory and industrial thermal-processing applications. The work is reviewed from the actual drawing, geometry, material, tolerance and application requirements, so the quotation reflects the real manufacturing route instead of a generic catalog item.
Input
Drawings, samples, dimensions, photos and process requirements.
Process
Cutting, drilling, slotting, grinding, polishing and thermal processing.
Output
Prototype, small-batch or batch production after engineering review.
What We Fabricate
Typical custom quartz glass parts
The examples below link to existing product pages for reference. For non-standard dimensions, ports, openings or assemblies, send the drawing or sample details for engineering review.
Quartz tubes and furnace tubes
Fused quartz process tubes for diffusion, oxidation, heating and thermal-processing equipment.
View reference productQuartz plates, discs and windows
Flat quartz components, viewport windows and polished discs for process observation and optical paths.
View reference productQuartz flanges and fittings
Custom quartz collars, flanges, joints and fittings for tube assemblies and vacuum-adjacent hardware.
View reference productQuartz wafer boats and carriers
Drawing-based wafer support parts for horizontal and vertical furnace workflows.
View reference productQuartz bell jars and domes
Transparent fused quartz domes, bell jars and chamber covers for thermal or vacuum-related assemblies.
View reference productQuartz cleaning tanks
Quartz tanks and vessels for wet-process, laboratory and high-purity handling environments.
View reference productQuartz gas injectors
Quartz gas injectors, perforated plates and distribution parts for process equipment.

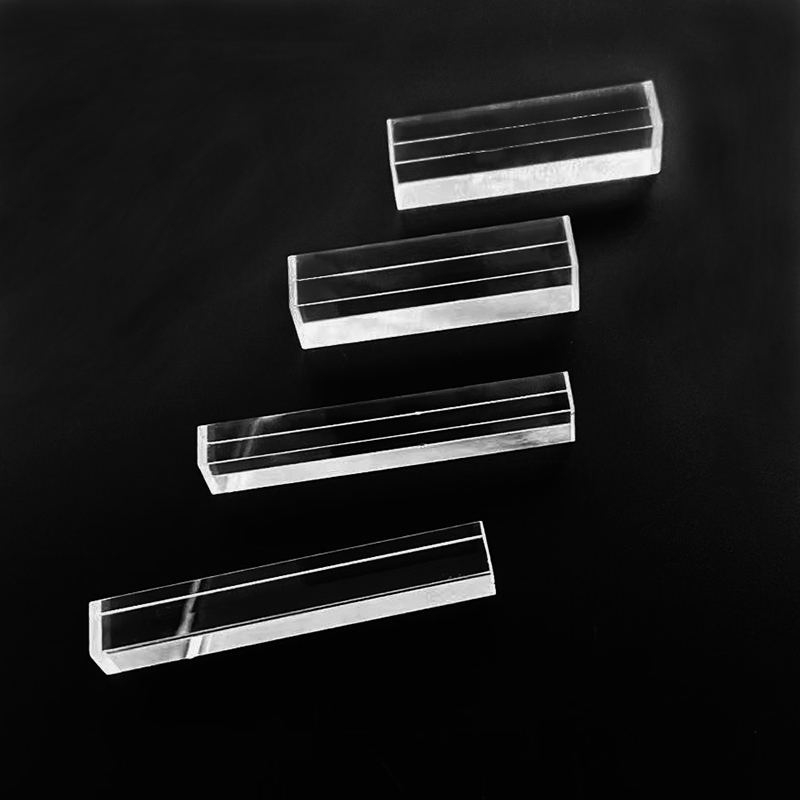

View reference productCustom blocks and special-shaped parts
Non-standard quartz blocks, machined profiles and assemblies reviewed from drawings or samples.
View reference productMaterials and Grades
Quartz glass material selection is matched to the application
This page focuses on quartz glass fabrication. Related sapphire and precision ceramic parts can be reviewed as adjacent hard-brittle material projects when the drawing or assembly requires them.
Fused quartz
Used for high-temperature, optical and high-purity applications where thermal stability and low contamination matter.
Fused silica and high-purity quartz glass
Reviewed by grade, transparency, geometry and application requirements before quotation.
Opaque or transparent quartz
Selected where applicable based on process temperature, visual inspection needs and component design.
Adjacent sapphire and ceramic parts
Available for related hard-brittle component projects when the drawing calls for non-quartz materials.
Fabrication Capabilities
From blank preparation to inspection-ready custom quartz components
Capabilities are selected by the drawing requirements. Complex features, welded ports, polished surfaces and inspection expectations are confirmed before production.
Precision cutting
Cut quartz stock and blanks to drawing dimensions before secondary machining or thermal processing.
Drilling and slotting
Machine holes, slots and openings depending on wall thickness, geometry and tolerance requirements.
Grinding and polishing
Prepare edges, surfaces and optical or sealing areas where the design requires controlled finish.
Welding, flame working and thermal processing
Review welded flanges, side ports, domes and tube assemblies for relevant thermal-processing designs.
CNC precision machining
Support complex profiles and repeatable features where geometry and material behavior allow machining.
Quality inspection
Inspect dimensions, critical features and surface requirements according to agreed drawing notes.
RFQ Workflow
Drawing-based review before quotation
Custom quartz parts usually need geometry and process review before a responsible quotation. Please share available drawings or specifications first; the engineering review will clarify the material, fabrication route and inspection scope.
- 1
Share available drawings, samples or specifications.
- 2
Engineering reviews geometry, material, tolerance and application requirements.
- 3
Material grade and fabrication process are confirmed where needed.
- 4
Quotation is prepared after technical scope is clear.
- 5
Prototype or sample production can be arranged when the project requires validation.
- 6
Inspection is performed against agreed critical dimensions and requirements.
- 7
Batch production and packaging requirements are confirmed before delivery.
Quality and Documentation
Inspection scope is agreed by drawing and application
Dimensional inspection based on drawing notes and agreed critical features.
Material certificate when available from the selected material supply route.

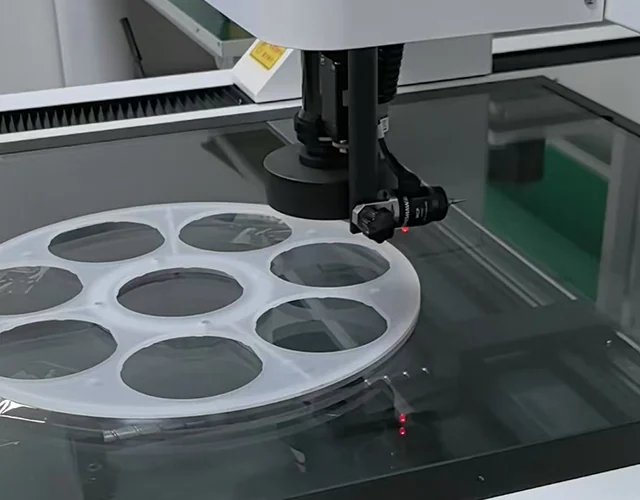

CMM inspection where applicable for geometry, tolerance and component size.
Surface finish check where the application requires controlled polished or sealing surfaces.
Helium leak test only for relevant welded or vacuum-related components.
Clean packaging requirements can be discussed based on the target application.
Applications
Custom fused quartz parts for demanding technical applications
Semiconductor manufacturing
Quartz tubes, wafer handling parts and custom process components for high-temperature equipment.
Photovoltaic and solar
Quartz fixtures and thermal-processing parts for photovoltaic manufacturing environments.
Optics and photonics
Quartz and related hard-brittle parts for optical paths, windows and technical assemblies.
Laboratory and research
Custom quartz vessels, tubes and test components for research, pilot and laboratory setups.
Industrial heating
Quartz tubes, plates and special-shaped parts for industrial thermal-processing equipment.
Related References
Products, materials and capabilities related to custom quartz fabrication
Related products
Related materials
Related capabilities
Procurement FAQ
Questions buyers ask before custom quartz fabrication
Can you fabricate quartz glass parts from drawings?
Yes. TuguanSemi reviews drawings for custom quartz glass fabrication and confirms feasibility based on geometry, material, tolerance and application requirements before quotation.
Can you make custom quartz parts from samples?
Sample-based review is possible for many projects. Final feasibility depends on whether key dimensions, material requirements and functional surfaces can be confirmed clearly enough for production.
What information is needed for a quotation?
Please share available drawings, dimensions, material grade, quantity, tolerance notes, surface finish requirements and the intended application. Photos or sample details are helpful when drawings are incomplete.
What quartz materials can be used?
Projects may use fused quartz, fused silica, high-purity quartz glass, and opaque or transparent quartz where applicable. The suitable material depends on the component design and operating environment.
Can you drill holes or machine slots in fused quartz?
Yes, holes, slots and openings can be reviewed for fused quartz parts. Feasibility depends on wall thickness, edge distance, tolerance, surface finish and risk of breakage during machining.
Can you weld quartz flanges or side ports?
Quartz welding, flame working and thermal processing can be reviewed for flanges, side ports, tubes and related assemblies. The process depends on geometry, sealing needs and thermal stress risk.
Do you support prototype and batch production?
Prototype, small-batch and batch production can be discussed after engineering review. Quantity, lead time and process route depend on geometry, material availability and inspection requirements.
What inspection documents can be provided?
Inspection support may include dimensional checks, surface finish checks, material certificate when available, CMM inspection where applicable, and helium leak test for relevant welded or vacuum components.
Which applications are suitable for custom quartz glass parts?
Custom quartz glass parts are commonly used in semiconductor, photovoltaic, optics, laboratory, research and industrial thermal-processing applications, depending on the final design and process conditions.
How should drawings or specifications be sent?
Use the contact or RFQ form to share available drawings, sample photos, dimensions and application notes. If file formats are not fixed, send the clearest available specifications for engineering review.
Start an RFQ
Request a Quote for Custom Quartz Parts
Send Your Drawing or Sample Details and discuss your quartz glass fabrication project with TuguanSemi.
