Fused Quartz
Custom Precision Components

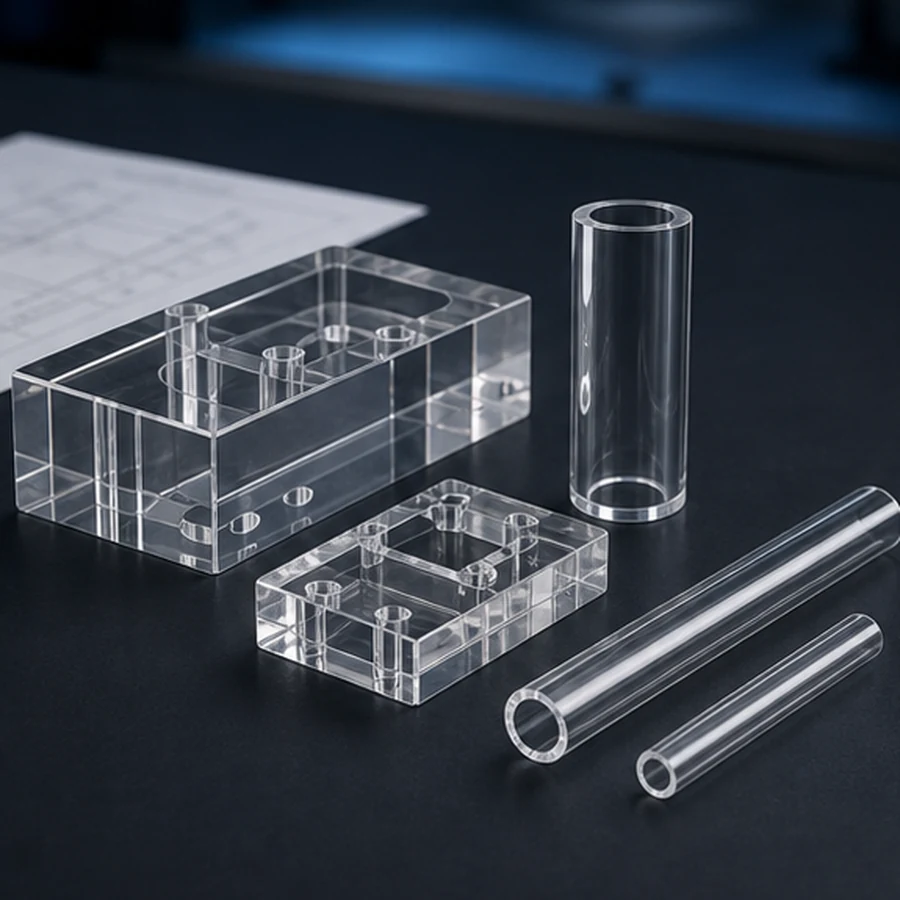

Custom precision components in fused quartz, sapphire, and technical ceramics manufactured from drawings or samples for semiconductor, optics, laboratory, and industrial applications.
Custom dimensions and specifications available upon request.
View Custom Quartz Glass Fabrication ServiceTechnical Specifications
| Parameter | Value |
|---|---|
| Materials | Fused quartz, Synthetic fused silica, Sapphire, Al₂O₃, Si₃N₄, BN, SiC |
| Dimensional Tolerance | Reviewed per drawing, material, and geometry |
| Surface Roughness | Process-dependent; specified per surface |
| Min Feature Size | Reviewed by material thickness and geometry |
| Max Part Size | Reviewed by material form and process route |
| Prototype Lead Time | Depends on complexity and inspection scope |

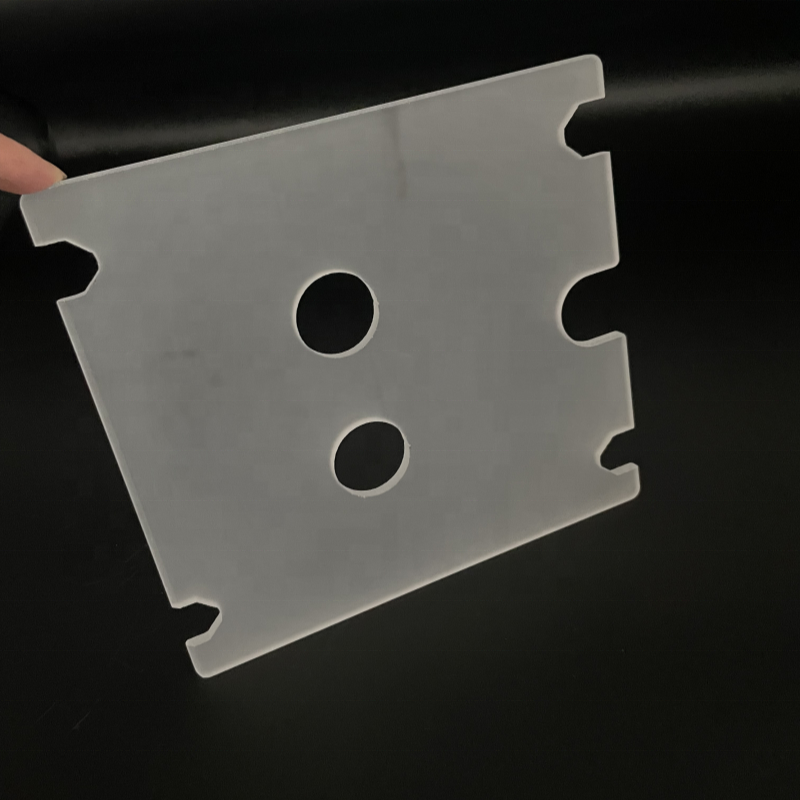

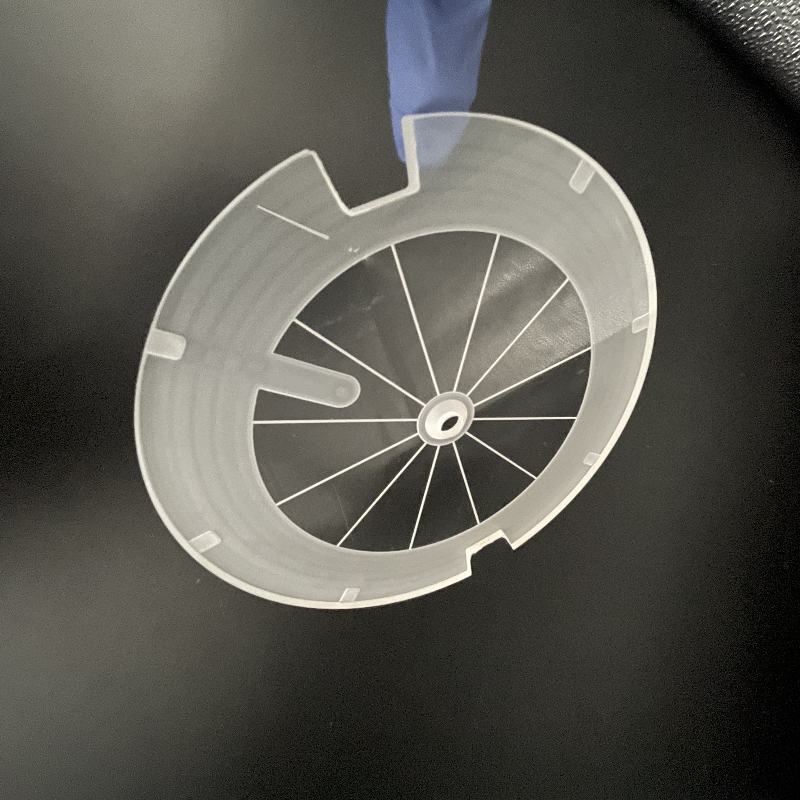

Custom Precision Components
Custom Precision Components
Tuguan Semiconductor’s core business is drawing-based custom fabrication. Most semiconductor process components are application-specific — we manufacture to your engineering drawings, CAD files, or physical samples.
How to Order Custom Parts
Option A — Engineering Drawing
Submit a 2D drawing (PDF, DWG, DXF) with:
- All critical dimensions and tolerances
- Surface finish requirements (Ra or equivalent)
- Material specification (grade, purity)
- Any special inspection or documentation requirements, such as leak testing, material analysis, or crystal-orientation review
Our team will review the drawing and follow up with quotation details, manufacturability notes, and estimated lead time based on scope.
Option B — CAD File (3D Model)
Submit a STEP or IGES 3D model. Our engineers extract a 2D working drawing for your approval before production begins.
Option C — Reverse Engineering (Physical Sample)
Send a worn or broken component for measurement. We will:
- Review critical dimensions using the appropriate measurement method
- Identify material by available records, visual inspection, or arranged analysis when required
- Generate a 2D drawing for your approval
- Manufacture replacement parts after geometry and material requirements are confirmed
Design for Manufacturability Support
Our application engineers can advise on:
| Topic | Guidance |
|---|---|
| Tolerance assignment | Which tolerances are achievable vs. unnecessarily tight |
| Wall thickness minimums | Structural limits for drilling and thin-wall sections |
| Corner radii | Minimum achievable internal radii |
| Surface finish requirements | What Ra is actually needed for each surface |
| Material selection | Which grade offers the best performance/cost trade-off |
This service is free — we prefer to get the design right before production begins.
Capabilities Summary
| Process | Materials | Tolerance |
|---|---|---|
| CNC cylindrical grinding | Selected materials | Tolerance reviewed by feature and drawing |
| Surface grinding + lapping | Selected materials | Flatness and parallelism reviewed by part size |
| Optical polishing | Quartz, sapphire | Surface finish specified and reviewed case by case |
| Diamond drilling | Selected materials | Diameter and position tolerance reviewed by design |
| Diamond slotting | Selected materials | Slot width and edge quality reviewed by geometry |
| Precision cutting (wire saw) | Selected materials | Thickness and edge requirements reviewed by material |
| Fusion welding | Quartz | Leak testing can be arranged for relevant assemblies when specified |
| Flame forming | Quartz | Profile requirements reviewed by drawing |
| Annealing | Quartz | Stress-relief requirements reviewed by application |
Lead Time Factors
Lead time depends on drawing complexity, material availability, quantity, processing steps, and inspection requirements. Prototype and batch orders are reviewed after drawings, samples, or specifications are received.
Quality Documentation
Documentation can be discussed based on order requirements and may include:
- Dimensional inspection records for agreed critical features
- Material certificates depending on material source and order scope
- Certificate of conformance or project-specific quality documents when applicable
- Additional QC requirements specified at order placement
Related Products
Quartz Diffusion Tube
Fused quartz diffusion and oxidation tubes for semiconductor furnaces — straight bore, flanged, and bell-end configurations reviewed against furnace and process requirements.
Sapphire Window & Optical Flat
Single-crystal sapphire windows and optical flats for semiconductor process chambers, optical monitoring, and high-temperature applications, with specifications reviewed case by case.
Ceramic Wafer Carrier & Boat
Alumina and silicon carbide wafer carriers, boats, and cassettes for high-temperature semiconductor processes, reviewed by material, geometry, and application requirements.
Ready to order or need a custom size?
Submit your drawing or specifications — we respond within 24 hours.
