Precision Perforated Fused Quartz Disc

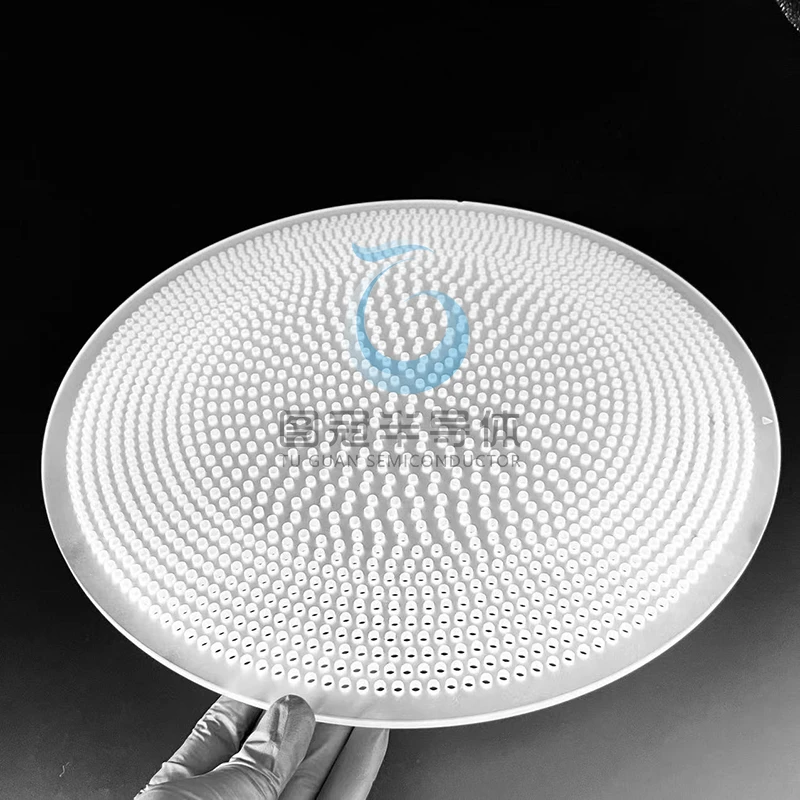

  • White gloved hand holding a round, translucent Fused Quartz sieve plate with a dense array of small, precisely drilled holes

    • Precision Perforated Fused Quartz Disc

    Our precision-perforated Fused Quartz discs are custom-engineered for demanding applications in optical components, microfluidic devices, laser systems, and filtration. Crafted from high-purity Fused Quartz, these discs feature optical-grade polish, high transmittance, and exceptional chemical resistance, ensuring precise and contamination-free performance in critical environments.

    Get A Free Inquiry

    Key Specifications

    • Material: High-Purity Fused Quartz (SiO₂ ≥99.99%)
    • Diameter: 50.0 mm ±0.1 mm
    • Thickness: 3.0 mm ±0.05 mm
    • Number of Holes: 2000
    • Hole Diameter: 0.15 mm ±0.02 mm
    • Hole Arrangement: Uniform hexagonal/array pattern (customizable)
    • Surface Finish: Optical-grade polish (Ra ≤5 nm)
    • Flatness: ≤λ/4 @ 632.8 nm

    Material Properties

    • Transmittance: >92% (200–2500 nm wavelength range)
    • Thermal Stability: Up to 1200°C (no structural deformation)
    • Chemical Resistance: Inert to acids, alkalis, and organic solvents.

    Processing Requirements

    • Hole Precision:
      Positional tolerance: ±0.02 mm (relative to design coordinates).
      Perpendicularity: ≤0.5° deviation from surface normal.
      Edge quality: Burr-free, laser-drilled or etched (optional).
    • Surface Quality:
      Scratch-dig: 20-10 (MIL-PRF-13830B standard).
      Cleanliness: Class 100 cleanroom packaging.

    Inspection & Testing

    • Dimensional Verification: CMM (Coordinate Measuring Machine) for hole size/spacing.
    • Optical Testing: Interferometry for flatness; spectrophotometry for transmittance.
    • Visual Inspection: 100% check for cracks, chips, or contamination.

    Applications

    Optical components, microfluidic devices, laser systems, or filtration systems (customizable)

    Packaging & Storage

    • Packaging: Anti-static, vacuum-sealed with shock-absorbent foam.
    • Storage: Dry environment (<40% RH), 10–30°C.

    Notes
    Custom configurations (hole patterns, coatings, or additional markings) available upon request.
    Compliance certificates (RoHS, ISO 9001) provided with bulk orders.
