Fused Quartz Windows & Chamber Components

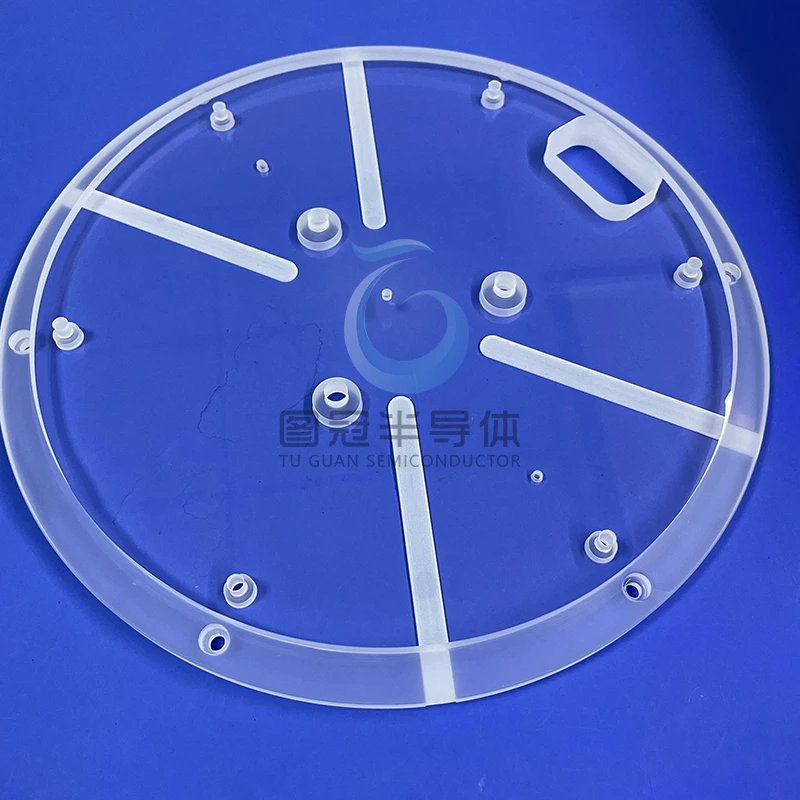

  • Close-up of a large, clear, circular 12-inch Fused Quartz plate with intricate etched radial lines and internal circles, resting on a blue surface

    • Fused Quartz Windows & Chamber Components

    Our precision custom Fused Quartz windows and chamber components are engineered for demanding applications in semiconductor manufacturing, plasma etching, and vacuum systems. Crafted from high-purity Fused Quartz, these 12-inch plates offer exceptional UV transparency, thermal stability, and chemical resistance, ensuring precise optical access and reliable performance in critical high-temperature and corrosive environments.

    Get A Free Inquiry

    Material

    • Base Material: High-purity synthetic fused silica (SiO₂ ≥99.99%)
    • Optical Grade: UV-grade transparency with low hydroxyl (OH) content.

    Dimensions

    • Diameter :100 mm   ±0.05 mm
    • Thickness : 3 mm   ±0.05 mm
    • Edge Treatment : Fine-ground   ≤0.3 mm chamfer

     Physical Properties

    • Density: 2.2 g/cm³
    • Hardness: Mohs 5.5-6.5
    • Thermal Expansion: 0.55 × 10⁻⁶/°C (20-300°C)
    • Softening Point: 1683°C

    Optical Properties

    • Transmission Range: 190 nm (UV) to 2500 nm (IR)
    • Refractive Index: 1.458 @ 587.6 nm (nd)
    • Scratch-Dig: 60/40 (MIL-PRF-13830B)
    • Surface Flatness: λ/4 @ 632.8 nm

    Surface Specifications

    • Ra Roughness : ≤5 Å (polished surfaces)
    • Parallelism : ≤1 arcmin

    Chemical Resistance

    • Resistant to acids (except HF), water, and organic solvents.

    Applications

    • Optical windows, laser systems, UV lithography.
    • Semiconductor processing, high-temperature viewports.

    Certifications & Compliance

    • RoHS compliant.
    • Custom metrology reports available upon request.

    Packaging

    • Individually wrapped in anti-static foam.
    • Shipped in rigid, crush-proof containers.

    Notes
    Avoid mechanical shock or direct contact with sharp objects.
    Clean with IPA or acetone using lint-free wipes.
    For full technical data or custom requests, contact email
