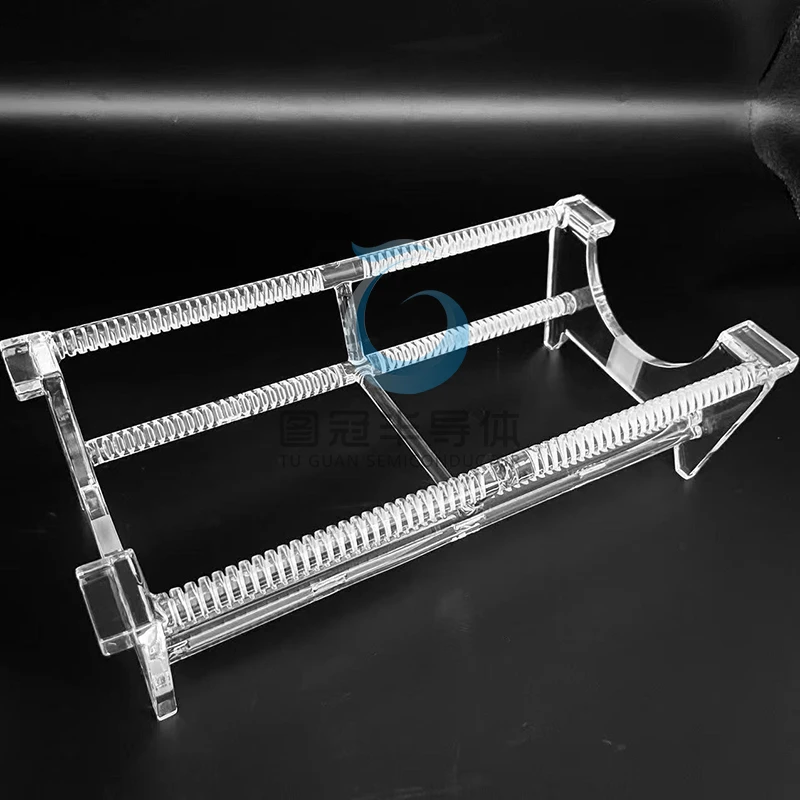

  • Clear fused quartz wafer boat with multiple slots for semiconductor wafers.

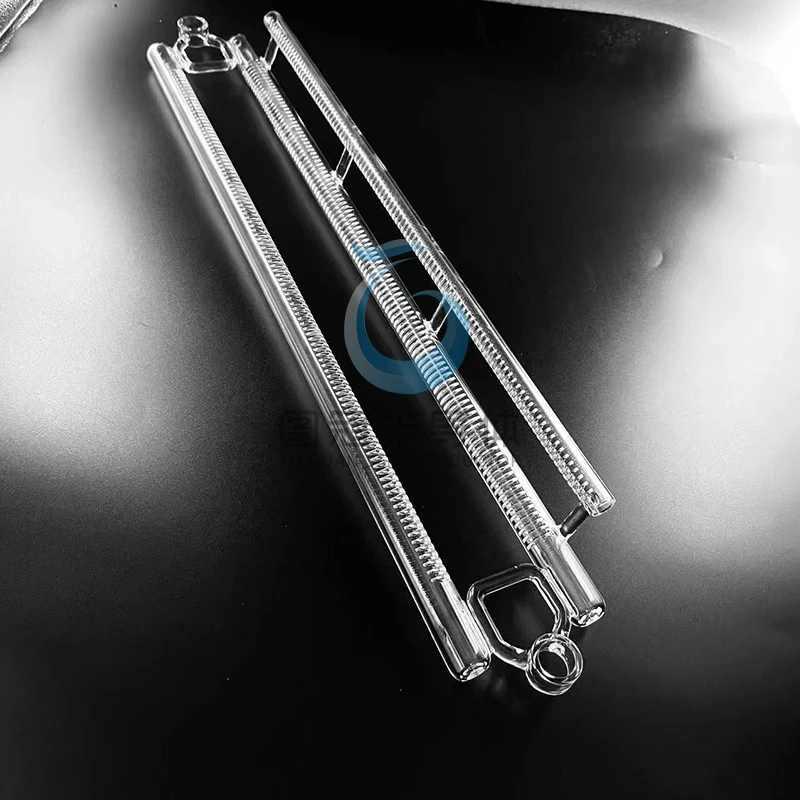

  • Long, clear fused quartz rods with spiral grooves, likely components of a wafer boat.

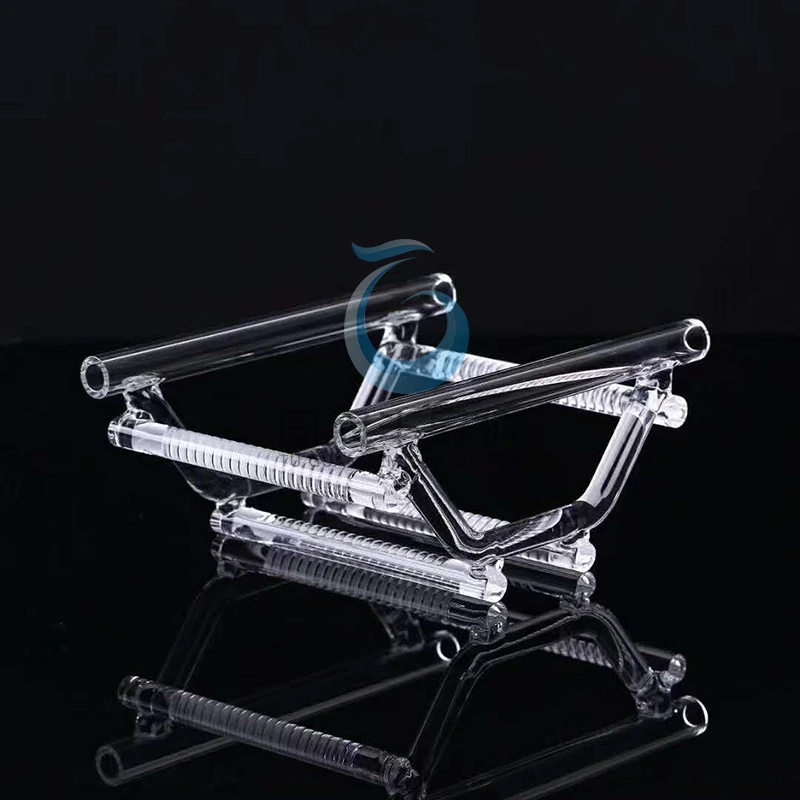

  • Compact clear fused quartz boat or carrier design, angled view.
  • Opaque fused quartz wafer carrier frame with straight support rods.

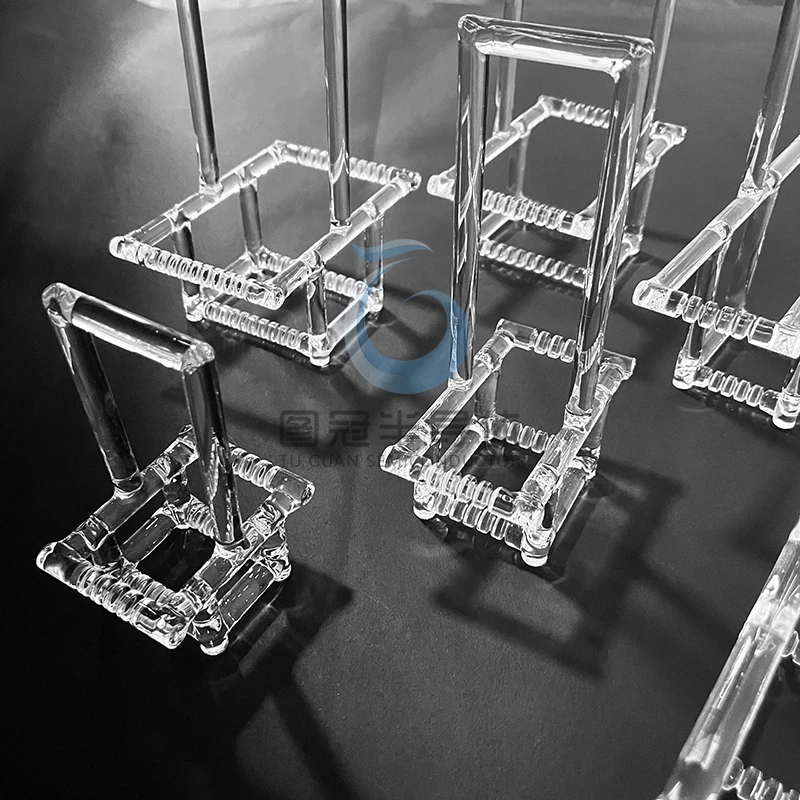

  • Multiple individual clear fused quartz wafer support stands or components.

    • Fused Quartz Wafer Boats

    The Quartz Cleaning Boat is a high-purity, corrosion-resistant carrier designed for semiconductor, photovoltaic, and precision electronics industries. It is used to hold wafers or components during wet/dry cleaning, acid etching, or high-temperature processes.

    Get A Free Inquiry

    Product Overview

    Our high-purity, corrosion-resistant fused quartz boats and carriers are custom-designed for semiconductor, photovoltaic, and precision electronics industries. Ideal for wafer cleaning (RCA, SC1/SC2), acid etching, high-temperature annealing/diffusion, and CVD/PVD processes, these components offer ultra-clean, non-contaminating surfaces and excellent thermal stability, meeting SEMI F20/F47 standards.

    Technical Specifications

    • Parameter : Details
    • Material : Fused Quartz (SiO₂ ≥99.99%)
    • Dimensions : Customizable (Standard: Length 200–500 mm, Width 50–150 mm, Height 20–50 mm)
    • Max. Temperature : 1,200°C (Continuous Use) / 1,450°C (Short-Term)
    • Surface Finish : Acid-polished, Ra ≤0.8 μm
    • Purity : Low metallic impurities (Na, K, Fe, etc. <1 ppm)
    • Thermal Stability : Coefficient of Thermal Expansion (CTE): 0.55 ×10⁻⁶/°C (20–1,000°C)

    Key Features

    • High Chemical Resistance: Resists HF, HCl, HNO₃, and other aggressive chemicals.
    • Low Thermal Expansion: Minimizes deformation under rapid temperature changes.
    • Non-Contaminating: Ultra-clean surface prevents particle adhesion.
    • Custom Design: Slot spacing, depth, and boat geometry tailored to client needs.

    Applications

    • Wafer cleaning in wet benches (RCA, SC1/SC2).
    • Acid bath processes (e.g., BOE etching).
    • High-temperature annealing/diffusion steps.
    • CVD/PVD chamber component handling.

    Quality Assurance

    • Compliance: Meets SEMI F20/F47 standards.
    • Testing:
      ICP-MS for impurity analysis.
      Surface roughness measurement via AFM.
      Thermal shock testing (1,000°C ⇄ 25°C, 10 cycles).

    Packaging & Storage

    • Individually packed in anti-static, ESD-safe containers.
    • Store in a dry, dust-free environment (10–30°C).

    Precautions

    • Avoid mechanical impact or sudden temperature changes (>10°C/min).
    • Clean with DI water or ethanol before first use.
