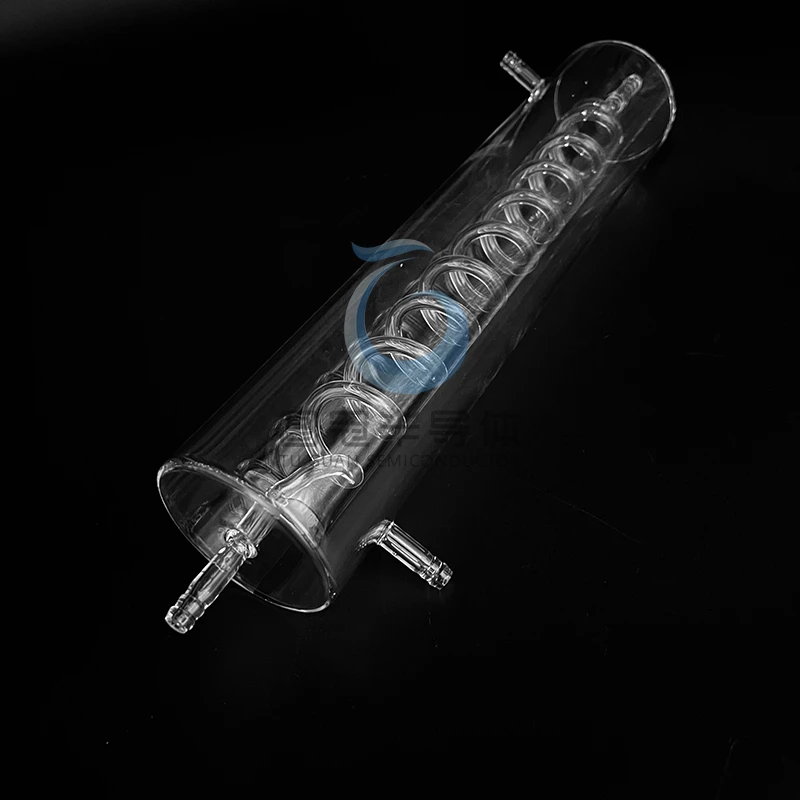

  • Clear Fused Quartz condenser tube with an internal spiral coil and two side inlets/outlets.

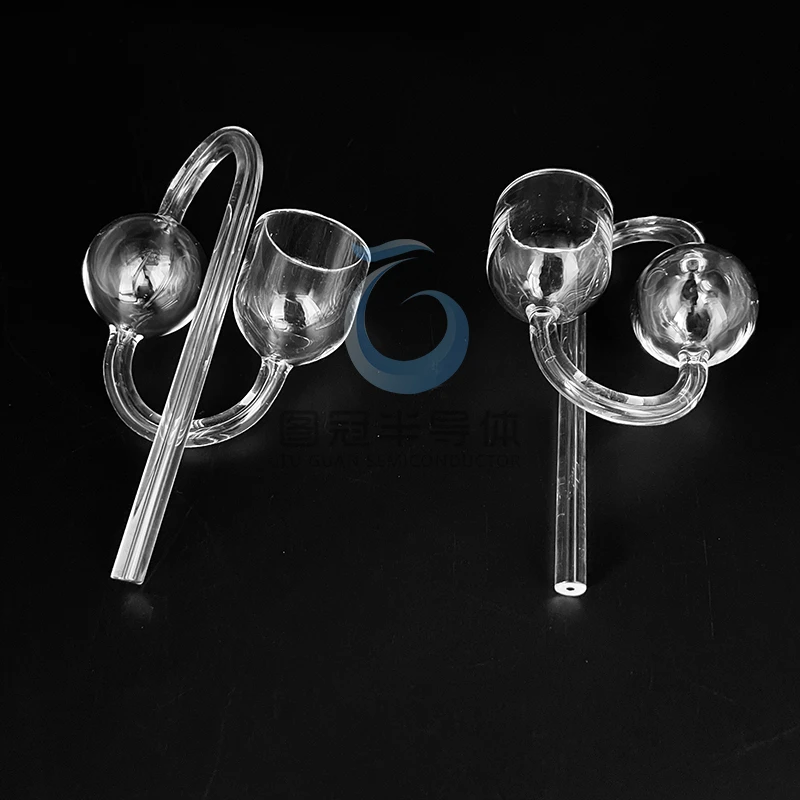

  • Two custom clear Fused Quartz bubbler tubes, one U-shaped with a ball joint, the other with a flared top and bulb.

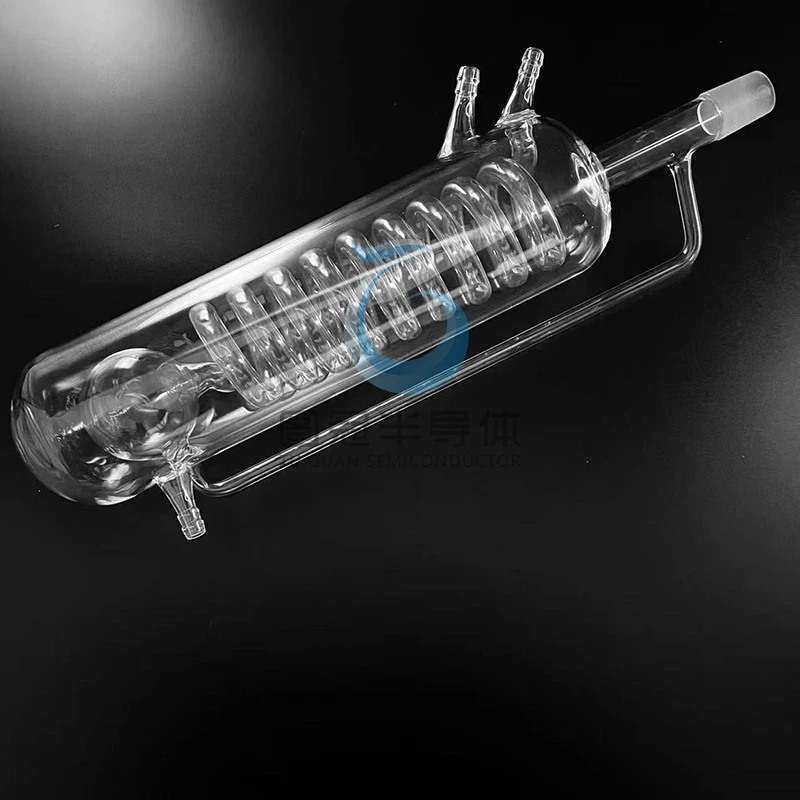

  • Clear Fused Quartz condenser tube with internal spiral, supported by a stand, featuring multiple ports.

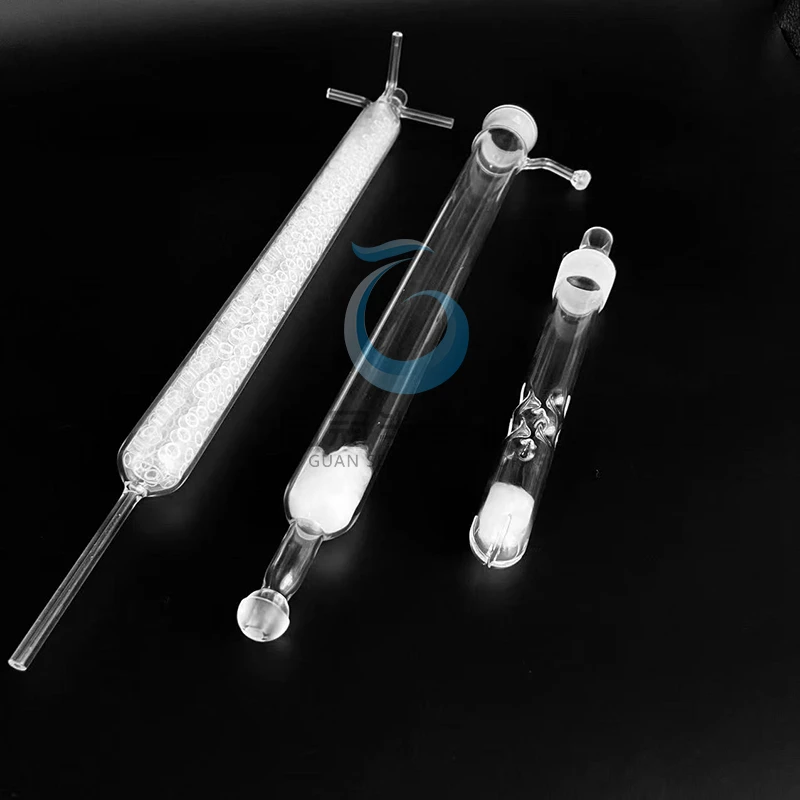

  • Three clear Fused Quartz tubes with various internal structures, including one filled with spherical beads and two with internal white solid material.

    • Fused Quartz Condensers & Laboratory Glassware

    Fused quartz condensers, heat exchangers, and lab glassware for high-purity chemical processing, semiconductor manufacturing, and research. Made from ultra-high-purity fused silica with smooth flame-fused transitions, these components deliver excellent chemical inertness, thermal stability, and precise, clean performance in high-temperature and corrosive environments.

    Get A Free Inquiry

    What to Provide for a Quote

    • Drawing (PDF/STEP) or model of the condenser/glassware
    • Type & layout: Liebig / Allihn (bulb) / Graham (coil-in-tube) / Vigreux / Dimroth / jacketed reflux / cold-finger / Soxhlet parts; adapters, receivers, distillation heads
    • Tube sizes: OD/ID/lengths; coil diameter & turns (for Graham/Dimroth); jacket OD/ID and effective condensing length
    • Connections: ground taper joints (size/standard), ball/socket, hose barbs (size), KF/ISO/CF flanges, threaded ends, or custom adapters
    • Ports & orientation: coolant in/out positions, vent/drain, thermometer/pressure port, vacuum take-off angle
    • Operating conditions: media, target flow rates, vacuum/allowable pressure, max temperature & thermal cycling, cleanliness level
    • Critical tolerances: joint size & fit, concentricity/runout, straightness, bend radius, end-face squareness
    • Quantity (prototype or batch), required inspection reports, packaging level

    Key Specifications

    • Material: High-purity fused quartz (SiO₂); UV-grade fused silica available on request
    • Configurations: Straight and jacketed condensers, bulb (Allihn), coil-in-tube (Graham), internal/annular coils (Dimroth), Vigreux fractionating columns, cold fingers, reflux condensers, Soxhlet sets, custom adapters and receivers
    • Construction: Precision bending and flame-fused joints; chip-free, polished ends; optional stress-relief annealing
    • Connections: Ground taper joints (NS/ISO), ball/socket joints, hose barbs, and vacuum flanges as specified
    • Cleanliness: Ultrasonic/DI cleaning; Class-100 compatible packaging
    • Service Note: Designed for vacuum or low positive pressure; any pressure rating is design- and test-dependent

    Material Properties (Typical)

    • Very low thermal expansion and good thermal-shock tolerance
    • Excellent chemical resistance to most reagents (note: HF attacks quartz)
    • Electrically insulating, low outgassing; high optical clarity

    Processing & Design Notes

    • Respect feasible minimum bend radius for the selected OD/ID to avoid thinning/stress in coils and U-bends
    • Define coolant hose sizes and flow direction; add drain/vent ports to jackets to prevent trapped air and virtual leaks in vacuum duty
    • Use generous fillets at junctions and deburred edges to reduce particle generation and micro-cracks
    • For fractionating columns (Vigreux/packed), specify packing type/length and support retainers
    • Provide straight “landing” legs at joint interfaces for robust sealing; choose joint standard to match your setup
    • We can advise practical tolerances for concentricity, straightness, runout, and joint fit based on geometry

    Inspection & Testing

    • Dimensional verification: tube/jacket sizes, joint sizes, coil diameter & turns, port positions
    • Optional tests: helium leak test for jackets/vacuum assemblies; flow/pressure-drop check; hydrostatic hold test per request
    • 100% visual inspection for chips, micro-cracks, inclusions, and contamination; optional birefringence/stress report and cleanliness certificate

    Applications

    High-purity distillation and reflux, solvent condensation/recovery, gas scrubbing and cooling, analytical and pilot-scale setups, semiconductor wet-chem benches and vacuum systems

    Packaging & Storage

    Port caps and coil protectors; anti-static, vacuum-sealed packaging with shock-absorbent foam and rigid outer protection. Store dry (<40% RH) at 10–30 °C; keep away from HF-containing chemicals.

    Notes
    Custom configurations (hole patterns, coatings, or additional markings) available upon request.
    Compliance certificates (RoHS, ISO 9001) provided with bulk orders.

    Quick Inquiry

    If you want to know more about quartz glass or seek quartz glass solutions, contact us for professional services!

    Available 24/7 via email or phone to help you with purchasing our quartz glass products, solutions, usage issues, or providing technical support.
